Product description

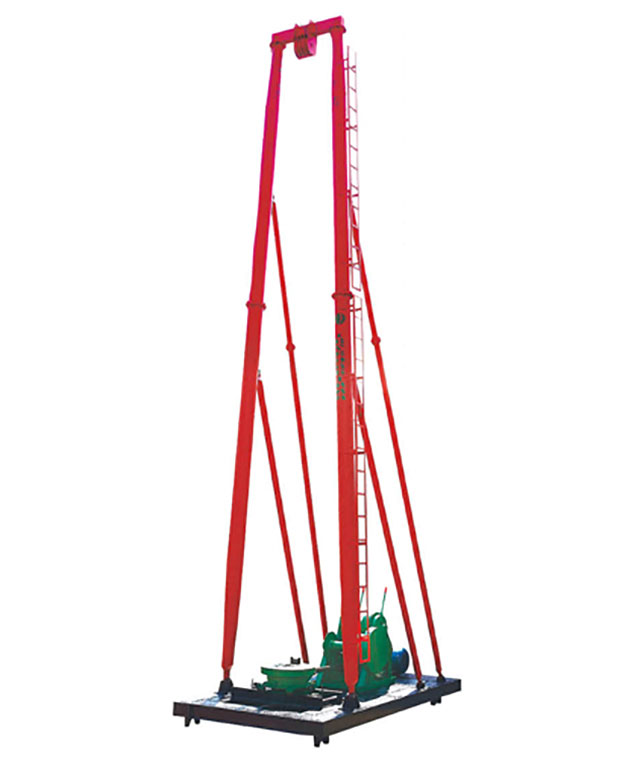

Gps-10 engineering drilling rig is a bulk large diameter rotary drilling rig, which is suitable for the construction of high-rise buildings, bridges, port foundation piles, large-diameter water wells and other construction projects.
Technical parameters of gps-10 engineering drilling rig
| model | GPS-10 |
| Drilling diameter (m) | 0.6 0.8 1.0 |
| Drilling depth (m) | 50 |
| turntable | |
| torque | 6 |
| Speed (forward and reverse) (R / min) | 5088 158 |
| Hoisting capacity of main winch (single rope) (KN) | 30 |
| Auxiliary winch lifting capacity (single rope) (KN) | 20 |
| mud pump | 3PNL |
| Flow (m3 / h) | 108 |
| Lift (MPA) | 0.21 |
| Active drill pipe | 110*110*5500（mm） |
| Drill pipe in hole | φ89*4500（mm） |
| Overall dimensions of main engine (L * w * h) | 10800 * 2420 * 2475 (mm) (after installation) |
| Weight of main engine (excluding drilling tool and pump set) (T) | 8.37 |
